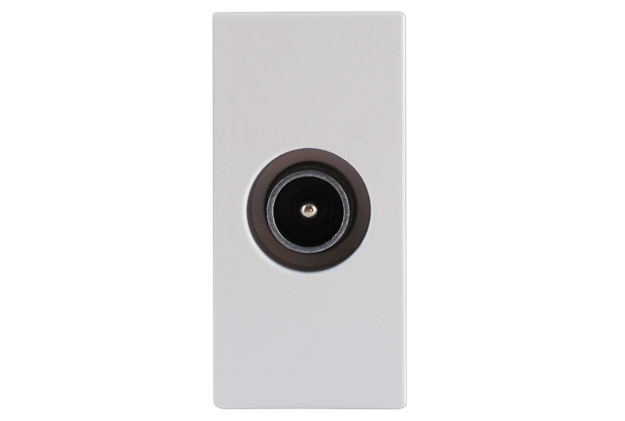

Coaxial socket-outlet TV-RD-SAT throughpass 1M

Technical data

Coaxial Socket-outlet TV-RD-SAT throughpass 10dB 1M

Output IEC 60169-2 male
Output attenuation 10dB
Throughpass attenuation 1,5dB
Frequency range 5-2150MHz
Return channel 5-40MHz, capable of interactive functions
Screening efficiency class A
Screw contact
In compliance with EN 50083-2,
EN 60728-4 and
EN 60728-11


ART.747401
ART.747402
ART.747403
ART.747404

pack: 20
Profi pack: 10/1

Signal white Warm white Anthracite Glitter grey

Wiring diagrams

GENERAL DESCRIPTION

• Designed for analog, digital RTV installations and cable operator installations.
• Throughpass socket for aerial systems of star-shaped type or individual aerial RTV installations.
• One input port for coaxial conductor conducting signal in the frequency of 5÷2150 MHz.
• One output port, in compliance with IEC 60169-2, male. Output attenuation 10dB. Throughpass attenuation 1,5dB.
• Usage of the frequency ranges of bands R, TV, SAT.
• Full characteristics of transmission in particular bands.
• Thanks to the 5-40 MHz return channel, can be used for interactive functions (hotel communications and interactive television).
• Casing of high screening efficiency made of the ZnAl alloy.

CERTIFICATES:

• EN 50083:2012 Cable networks intended for signal transmissions: TV, radio and interactive services. Part 2: Electromagnetic compatibility of appliances. Class A.
• EN 60728-4:2008 Cable networks for television signals, sound signals and interactive services. Part 4: Passive wideband equipment for coaxial cable networks.
• EN 60728-11:2010 Cable networks for television signals, sound signals and interactive services. Part 11: Safety requirements.

SCHEME

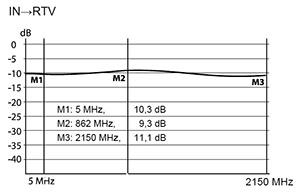

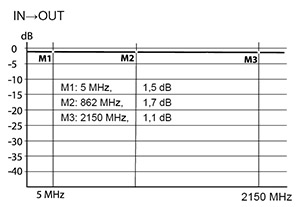

CHARACTERISTICS



Wiring diagrams

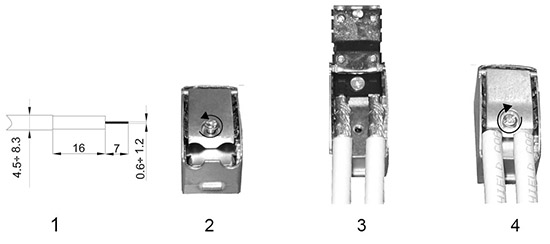

ASSEMBLY:
