Bathroom switches with indicators


The design ensures implementation of all safety requirements prescribed by international standards.


Technical data

SAFETY

The design ensures implementation of all safety requirements prescribed by international standards.



SWITCHES

  • 10AX and 16AX switch contacts.

  • Long life, in compliance with the requirements of the IEC standard. 40,000 operations (20,000 ONs and 20,000 OFFs).

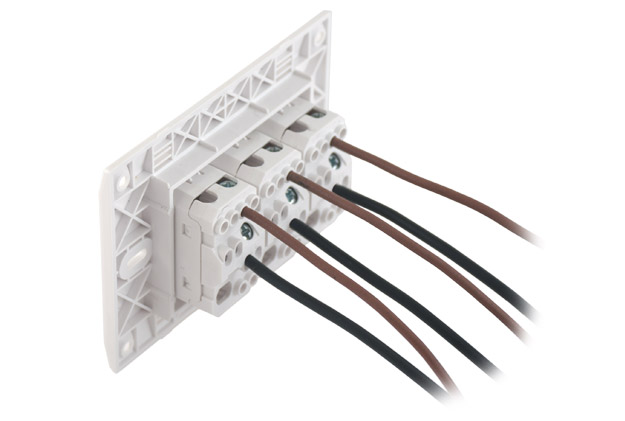

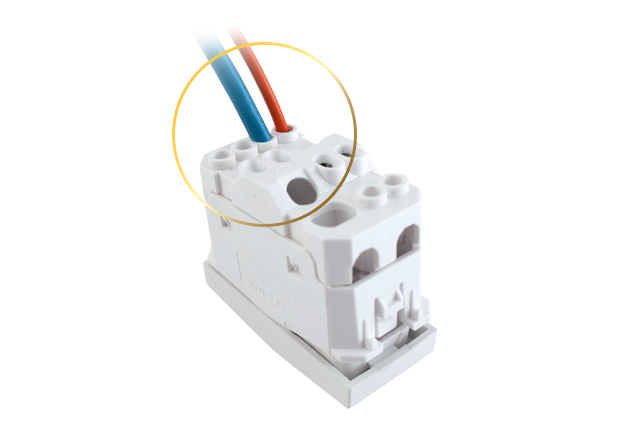

  • Screw-type terminals for safe acceptance of conductors with a cross-section of 1.5-2.5mm2. High barriers between the terminals provide safety against conductor short circuits.

  • The optimum wire length is engraved on the housing.

  • The indicator lamp is red and is used to indicate the on-state of the switch when the consumer is not in the field of view. The switch with an indicator lamp has an embedded terminal for a neutral conductor. The location lamp is used for the night-time illumination of a switch; it is blue and illuminates the switch in its off-state.
