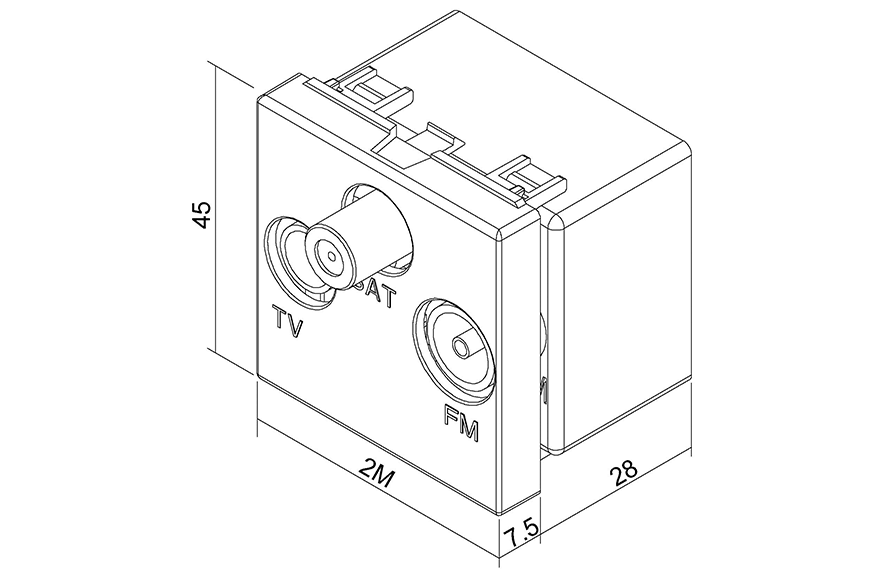

Coaxial socket-outlet TV-FM-SAT final, three outputs 2M
Technical data
Coaxial socket-outlet TV-FM-SAT final, three outputs 2M
FM and TV outputs IEC 60169-2
SAT output type “F” female IEC 60169-24
Frequency range 5-2400MHz
Clamp connection
In compliance with EN 50083-2, EN 60728-4 and EN 60728-11
ART.747901
ART.747902
ART.747903
ART.747904
pack: 20
Signal white Warm white Anthracite Glitter grey
Wiring diagrams
GENERAL DESCRIPTION
Designed for analogue and digital RTV-SAT installations.
Final socket for aerial systems of star-shaped type or individual aerial RTV and SAT installations.
Ensures signal division from multi switch or digital adder into R, TV and SAT signals.
One input port for coaxial conductor conducting signal in the frequency range of 5÷2400 MHz.
Two output ports consistent with standard IEC 60169-2 to connect radio receiver 'R' and TV receiver 'TV'.
One output port type 'F' to connect SAT tuner.
Full characteristics of transmission in particular bands.
High separation between particular ports.
Transfer of DC voltage on SAT output.
Galvanic separation of input from TV and R outputs.
Casing of high screening efficiency made of ZnAl alloy.
Socket can be used as digital adder of R. TV and SAT signals.
CERTIFICATES:
EN 50083:2012 Cable networks intended for signal transmissions: TV, radio and interactive services. Part 2: Electromagnetic compatibility of appliances. Class A.
EN 60728-11:2010 Cable networks for television signals, sound signals and interactive services. Part 11: Safety requirements
TECHNICAL DATA
Input frequency range | 5-2400MHz |
R output frequency range | 88-108MHz |
TV output frequency range | 5-68MHz; 120-862MHz |
SAT output frequency range | 951-2400MHz |
Coupling attenuation IN→R | 2,5-2,8dB |
Coupling attenuation IN→TV | 0,4-3,9dB |
Coupling attenuation IN→SAT | 2,5-5,8dB |
Reflection IN, R, TV, SAT | >10dB |
Screening | Klasa A |

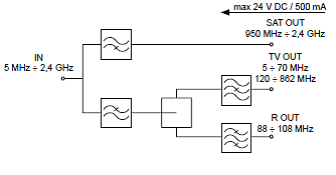

SCHEME
CHARACTERISTICS
Coupling attenuation IN→R
Coupling attenuation IN→TV
Coupling attenuation I-→SAT
ASSEMBLY
