PRIMERA - Intelligent dimmer 40-400W/VA with potentiometer and push-push switch


ART.860211
ART.860221

Technical data

Primera Classic

Intelligent dimmer
40-400W/VA with potentiometer and push-push switch
• For incandescent and halogen bulbs 230V~ 50Hz
• For low-voltage halogen bulbs 12V~ with dimmable toroidal transformer
• Soft start
• Microprocessor based overload protection, automatic turn-off
• More dimmer combinations is not allowed
• In accordance with EN 60669-1, EN 60669-2-1
• Screw contacts 1,5-2,5mm2
• For mounting in wall box ø60

ART.860211
ART.860212

pack. bag: 10

Primera Line

Intelligent dimmer
40-400W/VA with potentiometer and push-push switch
• For incandescent and halogen bulbs 230V~ 50Hz
• For low-voltage halogen bulbs 12V~ with dimmable toroidal transformer
• Soft start
• Microprocessor based overload protection, automatic turn-off
• More dimmer combinations is not allowed
• In accordance with EN 60669-1, EN 60669-2-1
• Screw contacts 1,5-2,5mm2
• For mounting in wall box ø60

ART.860221
ART.860222

pack. bag: 10

Signal white Warm white

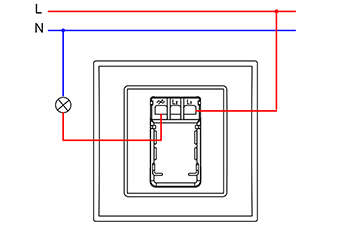

Wiring diagrams

One-point control


Two-point control


Three-point control
