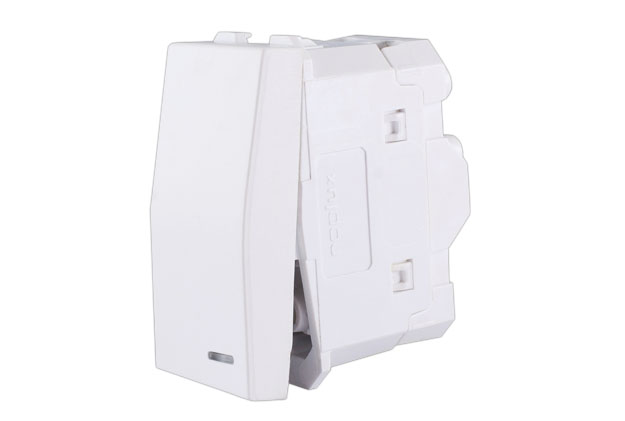

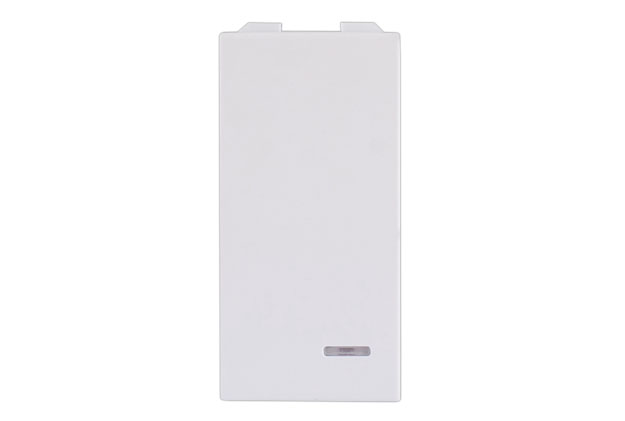

Two-way switch with locator light

Technical data

Two-way switch
10AX 250V~
with locator light 1M

10AX 250V~
Locator light is ON when the switch is OFF
In accordance with
EN 60669-1
Screw contacts
1,5-2,5mm2



ART.733201
ART.733202
ART.733203
ART.733204

pack: 20
profi pack: 10/1

Signal white Warm white Anthracite Glitter grey

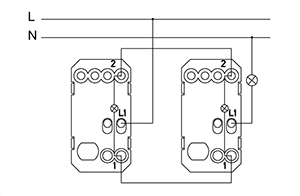

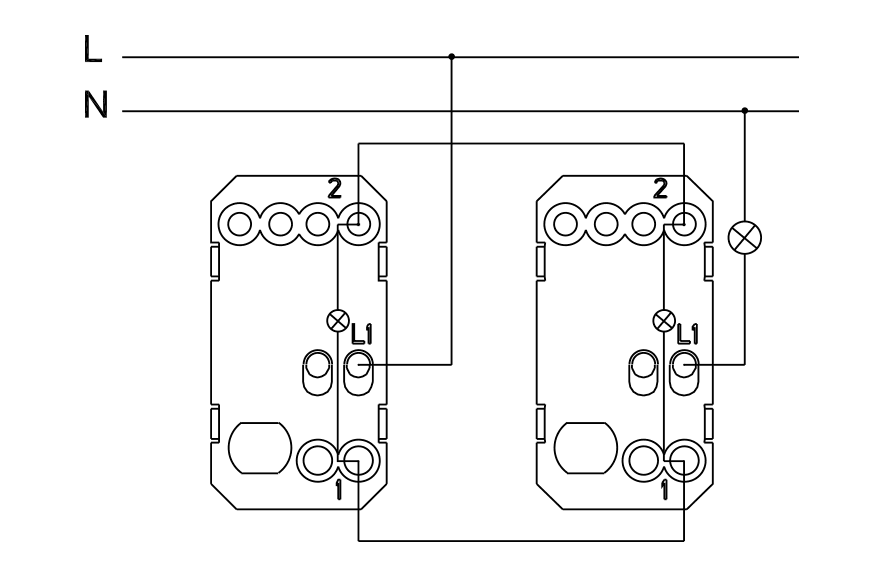

Wiring diagrams
