Intelligent dimmer 40-400W/VA with potentiometer and push-push switch 1M

Technical data

Intelligent dimmer 40-400W/VA with potentiometer and push-push switch 1M

For incandescent and halogen bulbs 230V~, for low-voltage halogen bulbs with toroidal transformers, with soft start.
Microprocessor based overload protection, automatic turn-off.
Max. one dimmer in the same Ø60 box is allowed.
Max. two dimmers in 3M, 4M and 7M boxes is allowed, the maximum loads controllable by each regulator should be reduced by 50%.
The side-by side installation of several dimmers in the same box is not permitted: insert a blanking module between two dimmers.
More dimmer combinations is not allowed.
Screw contacts 1,5-2,5mm2.
In accordance with EN 60669-1, EN 60669-2-1.

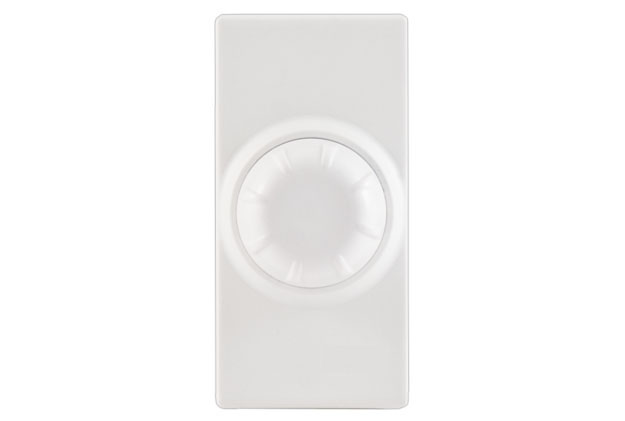

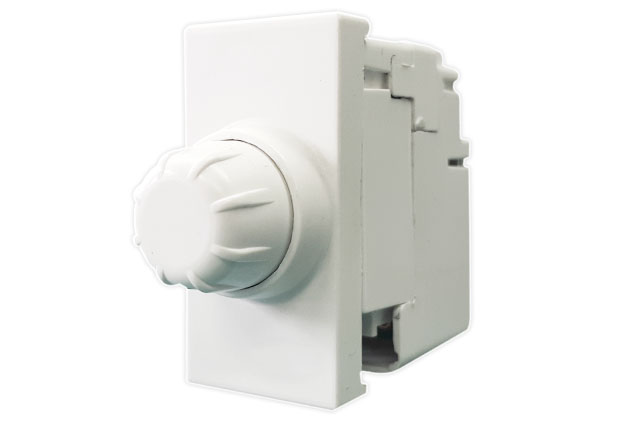

ART.760211
ART.760212
ART.760213
ART.760214

pack: 20

Signal white Warm white Anthracite Glitter grey

Wiring diagrams

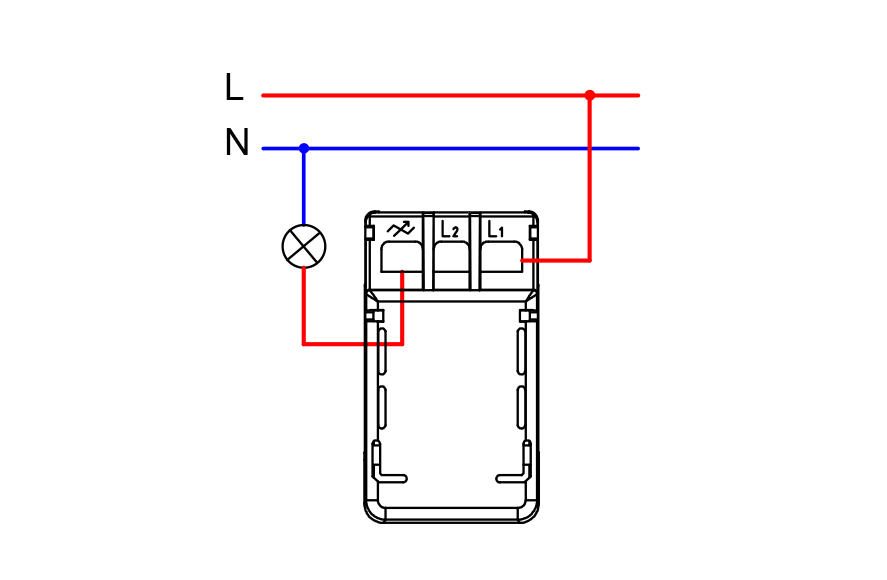

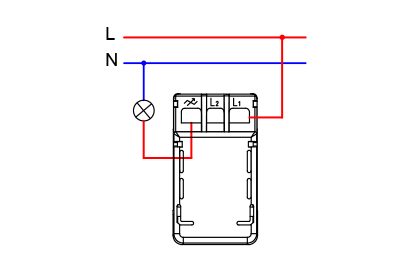

One point light control

Two point light control

Three point light control
