Technical data

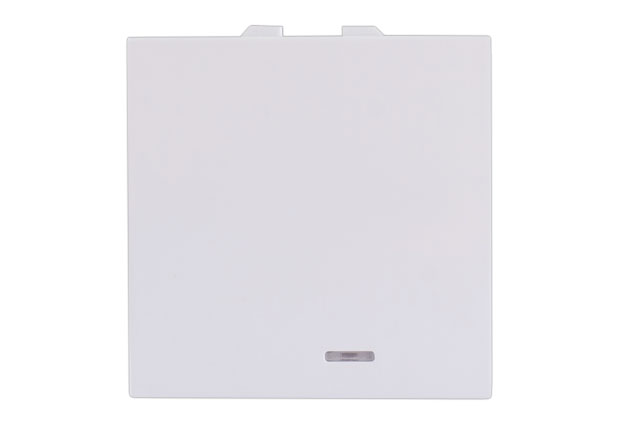

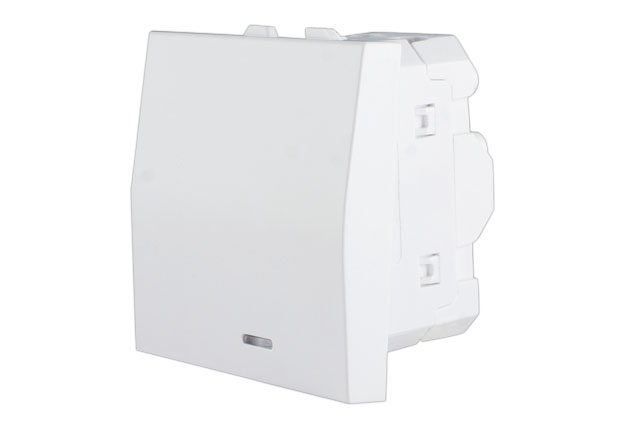

Two-way switch 16AX 250V~ with locator light 2M 16AX 250V~ Locator light is ON when the switch is OFF In accordance with EN 60669-1 Screw contacts 1,5-2,5mm2
ART.733801 ART.733802 ART.733803 ART.733804
pack: 20
Signal white Warm white Anthracite Glitter grey

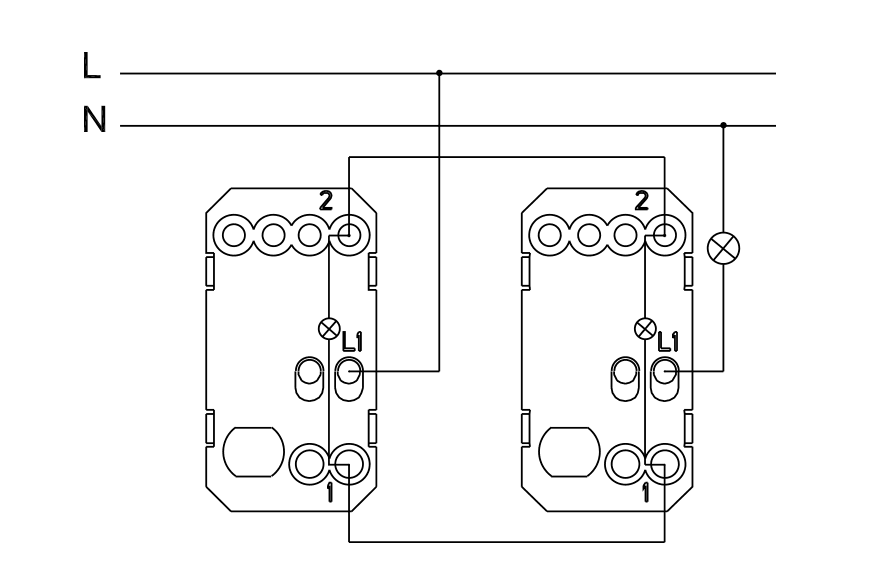

Wiring diagrams
