Dimmer 100-350W/VA with potentiometer and push-push switch 1M
Technical data
Dimmer 100-350W/VA
with potentiometer
and push-push switch 1M
For incandescent and halogen bulbs 230V~ and low-voltage halogen bulbs 12V~ with toroidal and lamelar transformers
2-way switch combination is possible
Max. one dimmer in the same Ø 60mm box is allowed
Max. two dimmers in 3M, 4M i 7M boxes is allowed, the maximum loads controllable by each regulator should be reduced by 50%.
The side-by-side installation of several dimmers in the same box is not permitted: insert a blanking module between two dimmers
More dimmer combinations is not allowed
Screw contacts 1.5-2.5mm2
LED locator, blue
In accordance with
EN 60669-1,
EN 60669-2-1
ART.737121
ART.737122
ART.737123
ART.737124
pack: 20
Signal white Warm white Anthracite Glitter grey
Wiring diagrams

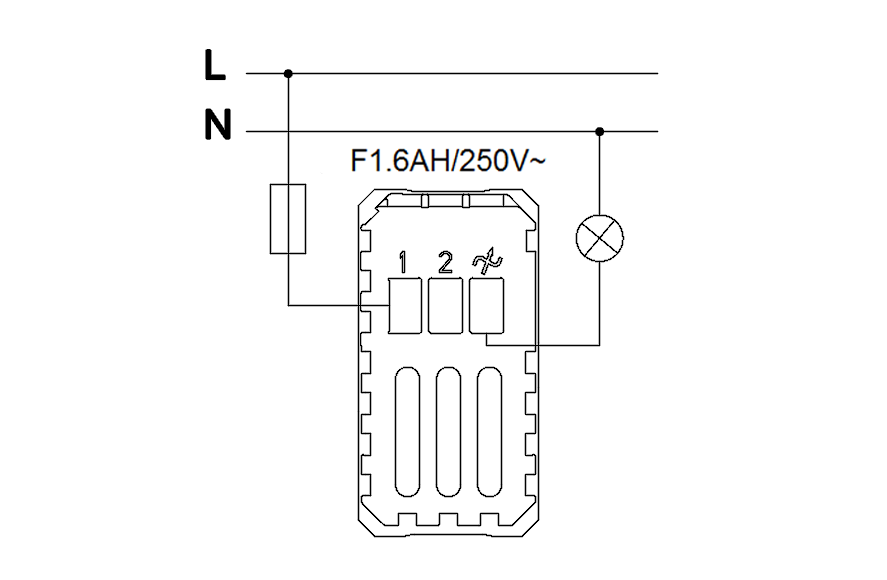

One-way switch
One point light control
*The connection should be made together with a a fuse carrier (npr. ART.7373..) with a quick acting fuse type F1,6AH/250V~.

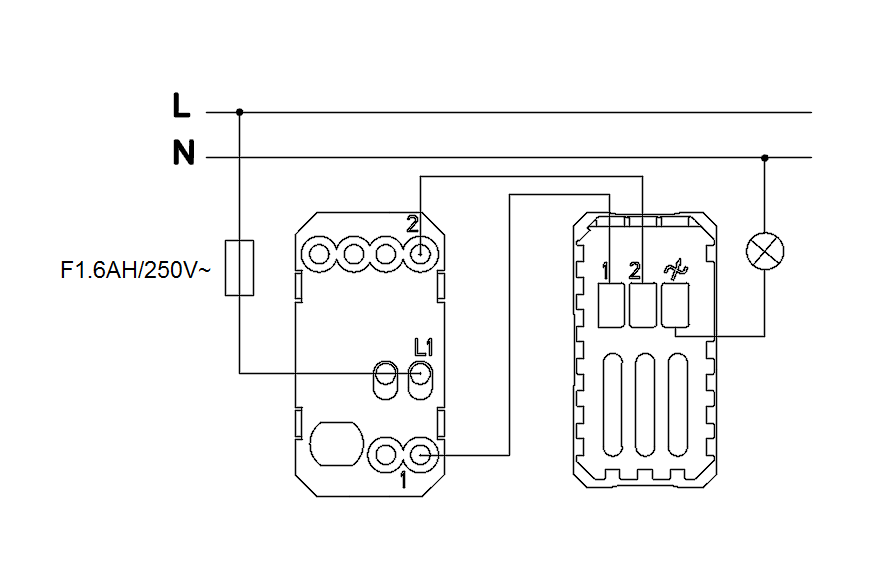

Two-way switch
Two point light control with one two-way switch
*The connection should be made together with a a fuse carrier (npr. ART.7373..) with a quick acting fuse type F1,6AH/250V~.

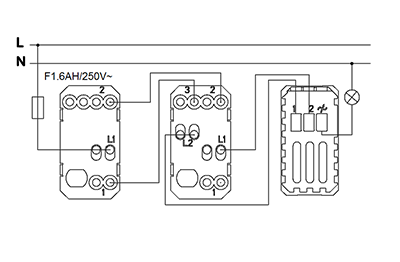

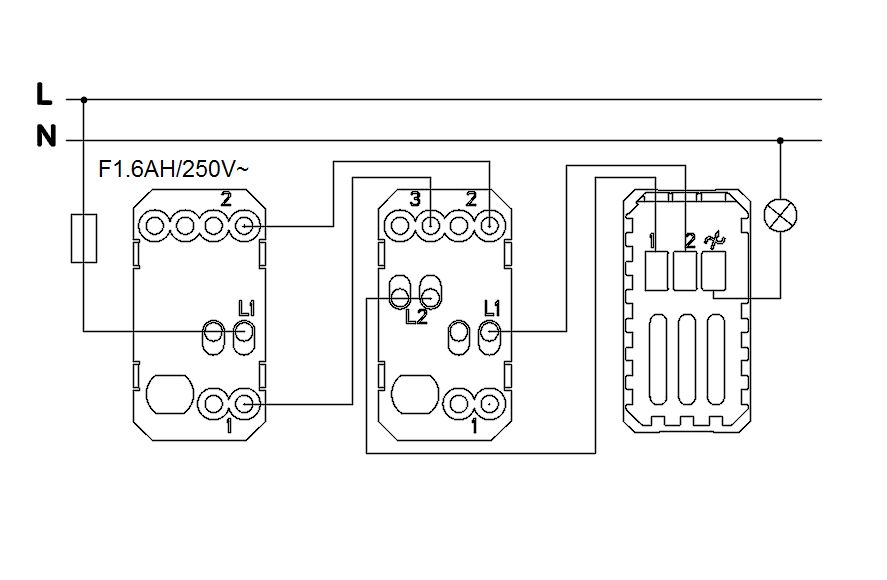

Two-way switch / Intermediate switch
Three point light control with one two way switch and one intermediate switch
*The connection should be made together with a a fuse carrier (npr. ART.7373..) with a quick acting fuse type F1,6AH/250V~.
